Multiplexing various cell-based assays allows the researcher to gain a more complete understanding of the biological phenomenon being studied while also saving time, reagents, cells and valuable test compounds. Promega offers a wide range of fluorescent and luminescent cell-based assays that can be successfully multiplexed(1)
. The homogeneous format of these assays allows them to be easily combined and measured in a single multiwell plate, allowing sequential analysis of any two of the following: cell viability, cytotoxicity, apoptosis and reporter activity.
Instrument quality is paramount for accurate measurement of signal from multiplexed assays. To address this issue, Promega now offers the GloMax®-Multi Detection System Cat.# E7031, an instrument designed for optimal detection of absorbance, fluorescence and luminescence signals over a broad dynamic range. Unlike other multifunction readers, the GloMax®-Multi System contains independent modules and circuitry for detecting each signal type. This creates an instrument with enhanced sensitivity and dynamic range in all modes.
To demonstrate the versatility and sensitivity of the GloMax®-Multi Detection System, the instrument was used to detect signal output from three sets of multiplexed cell-based assays: the CellTiter-Blue® Cell Viability Assay (Cat.# G8080; fluorescent cell viability assay) and Caspase-Glo® 3/7 Assay (Cat.# G8090; luminescent apoptosis assay); the CytoTox-Fluor™ Cytotoxicity Assay (Cat.# G9260; fluorescent cytotoxicity assay) and CellTiter-Glo® Luminescent Cell Viability Assay (Cat.# G7570); and the EnduRen™ Live Cell Substrate (Cat.# E6481; luminescent reporter assay) and Apo-ONE® Homogeneous Caspase-3/7 Assay (Cat.# G7792; fluorescent apoptosis assay).
CellTiter-Blue® Cell Viability Assay Multiplexed with Caspase-Glo® 3/7 Assay

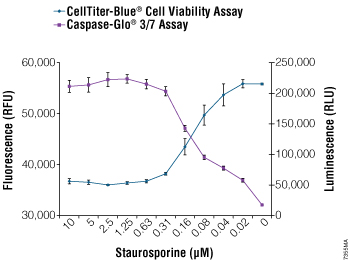

Fluorescent signal from resazurin (provided in the CellTiter-Blue® Reagent) reduction to resorufin by live cells was inversely proportional to luminescent signal generated by apoptotic cells, cleaving the proluminescent caspase-3/7 DEVD-aminoluciferin substrate (provided in the Caspase-Glo® 3/7 Reagent; Figure 1). These data demonstrate a correlation between loss of cellular reductive potential (viability) and gain of apoptotic response as a function of increasing staurosporine concentration.
CytoTox-Fluor™ Cytotoxicity Assay Multiplexed with CellTiter-Glo® Luminescent Cell Viability Assay

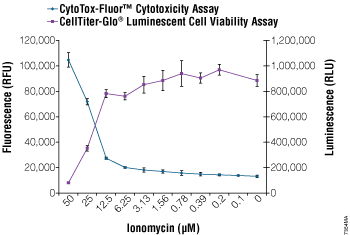

Fluorescent signal from Rhodamine 110, the cleaved product of the fluorogenic peptide substrate bis-alanyl-alanyl-phenylalanyl-rhodamine 110 (bis-AAF-R110; used in the CytoTox-Fluor™ Reagent to measure “dead-cell activity”), correlated with increasing concentrations of ionomycin (Figure 2). There was a corresponding decrease in cellular ATP (used as the limiting reaction component for the CellTiter-Glo® Reagent as an indicator of cell viability) as a function of ionomycin concentration. These data illustrate that as the ionomycin concentration increased, there was a corresponding increase in cytotoxicity and decrease in cell viability.
EnduRen™ Live Cell Substrate Multiplexed with Apo-ONE® Homogeneous Caspase-3/7 Assay

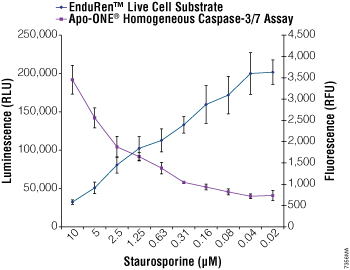

In the presence of the EnduRen™ Live Cell Substrate, cells constitutively expressing Renilla luciferase generated luminescence. This was used as a measure of protein expression and cell health. Renilla expression decreased proportionally with increasing concentrations of staurosporine (Figure 3). There was also a proportional increase in the cleavage of the profluorescent caspase-3/7 consensus substrate, rhodamine 110 bis-(N-CBZ-L-aspartyl-L-glutamyl-L-valyl-aspartic acid amide; Z-DEVD-R110), indicating cell apoptotic response to staurosporine. These data demonstrated the loss of reporter protein expression and activation of the apoptotic response with respect to increasing staurosporine concentration.
The GloMax®-Multi Detection System is a sensitive and cost-effective “all-in-one” instrument ideally suited for the researcher who wants to use a wide assortment of assay types and perform assay multiplexing. The GloMax®-Multi System effectively detects signal from fluorescent, luminescent and colorimetric assays for cell viability, cytotoxicity, apoptosis and reporter activity with little background noise. This is especially important when measuring bioluminescence, since excessive background noise will limit dynamic range. To learn more about the GloMax®-Multi Detection System, please visit the GloMax®-Multi System catalog entry.
