NAD(P)H-Glo™ Detection System

Part Numbers: G9061, G9062

G9061_NADPH-Glo Detection System_3
customize-this-small-pt-br

Monitor the Concentration of Reduced Forms of NADH and NADPH

  • Highly sensitive and rapid bioluminescent assay
  • Easily adapted for high-throughput format
  • Simple add-mix-measure protocol

Tamanho

Código selecionado: G9061

Solicitar cotação
This product is discontinued
Request a Sample
Not available in all countries
This product is available under our Early Access program - Learn More
This product is available under our Catalog (FT) program - Learn More
NAD(P)H-Glo™ Detection System
11738MD-W

The NAD(P)H-Glo™ Detection System is a bioluminescent, homogeneous, single-reagent-addition assay that quantitatively monitors the concentration of the reduced forms of NADH and NADPH levels in enzymatic reactions. The oxidized forms, NAD+ and NADP+, are not detected and do not interfere with quantitation.

The assay is rapid, requiring only a 40- to 60-minute incubation, has a broad linear range (25nM-50µM) and high signal-to background ratio (~400). Low nanomolar sensitivity, 25nM, allows direct in-well detection. The assay is well suited to measuring NAD(P)H production or consumption in high-throughput formats.

Assay Chemistry

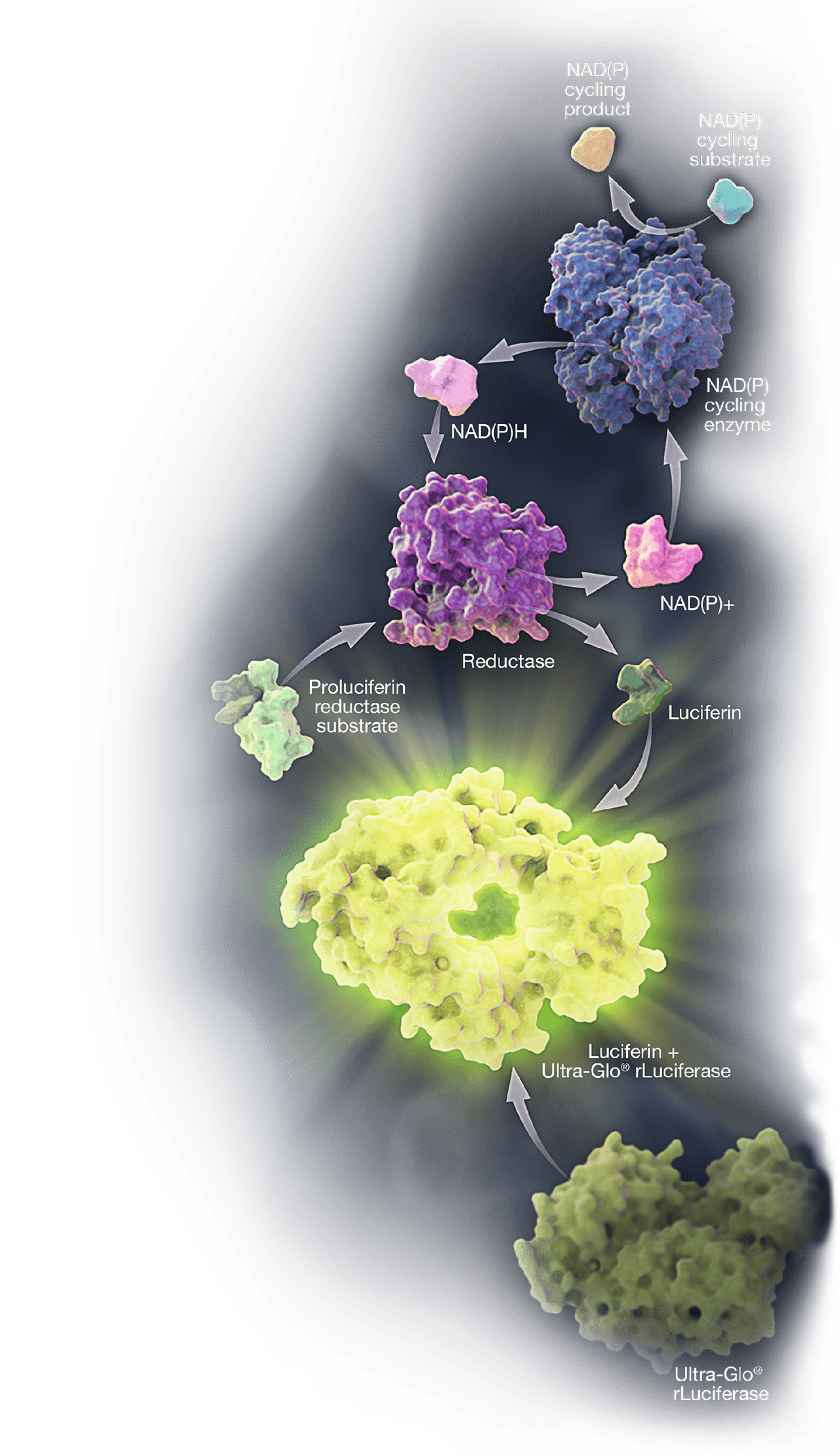

In the presence of NAD(P)H, a reductase reduces the proluciferin reductase substrate to form luciferin. Luciferin is quantified using Ultra-Glo™ Recombinant Luciferase, which is a component of the Luciferin Detection Reagent, and the light signal produced is proportional to the amount of NAD(P)H in the sample.

NADP_NADH_Foreground-Image

Sensível e Seletivo

O ensaio é seletivo para as formas reduzidas dos níveis de NADH e NADPH em reações enzimáticas.

11945MB-W

Compatible with High-Throughput Systems

Os protocolos simples de adição e leitura são compatíveis com o fluxo de trabalho automatizado e de alto rendimento, e os produtos químicos flexíveis se adaptam aos formatos de placas de 96, 384 e 1.536 poços e aos sistemas de alto rendimento. Eles produzem valores Z′ >0,7.

Os ensaios foram realizados usando 8 µl da concentração indicada de NADH com 8 µl do Reagente de Detecção de Luciferina apropriado em placas de 384 poços. S/B = relação sinal/plano de fundo.

11580MC-W

The NAD(P)H-Glo™ Assay detects only NADH and NADPH.


Estudo de Caso

Os pesquisadores da BioAscent implementaram o ensaio NAD(P)H-Glo™ para HTS. Nesse projeto, o Dr. McElroy e sua equipe usaram o Ensaio NAD(P)H-Glo™ para examinar 50.000 compostos contra uma enzima mal caracterizada que é um alvo potencial de medicamentos. O NAD(P)H-Glo foi escolhido por ter alta sensibilidade, com uma ampla faixa dinâmica e altas proporções de sinal para fundo.

Baixar Estudo de Caso (PDF)

Especificações

You are viewing: G9061 Change Configuration

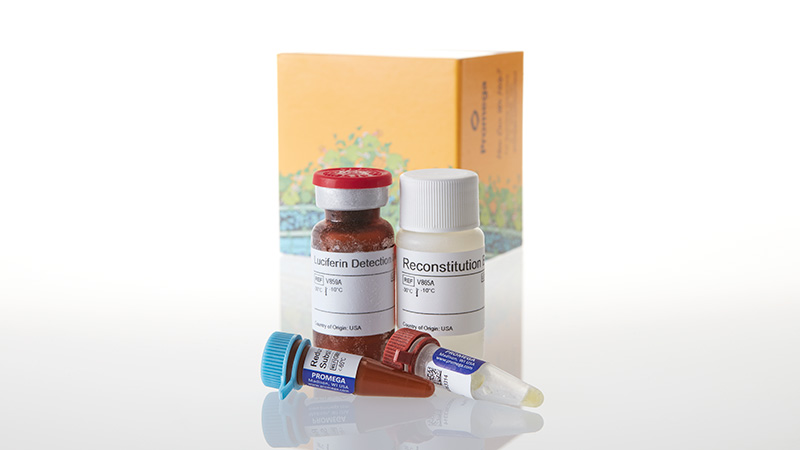

What's in the box?

Item Código Tamanho Concentration

Reductase

G884A 1 × 55μl 6mg/ml

Reductase Substrate

G885A 1 × 55μl

Luciferin Detection Reagent

V859A 1 × 1 each

Reconstitution Buffer

V865A 1 × 10ml

Certificado de Análise

Search by lot number

Restrições de uso

For Research Use Only. Not for Use in Diagnostic Procedures.

Condições de armazenamento

AA

Patents and Disclaimers

U.S. Pat. Nos. 9,273,343 and 9,951,372, European Pat. No. 2751089, Japanese Pat. No. 6067019 and other patents pending.

Especificações

You are viewing: G9062 Change Configuration

What's in the box?

Item Código Tamanho Concentration

Reductase

G884B 1 × 275μl 6mg/ml

Reductase Substrate

G885B 1 × 275μl

Luciferin Detection Reagent

V859B 1 × 1 each

Reconstitution Buffer

V865B 1 × 50ml

Certificado de Análise

Search by lot number

Restrições de uso

For Research Use Only. Not for Use in Diagnostic Procedures.

Condições de armazenamento

AA

Patents and Disclaimers

U.S. Pat. Nos. 9,273,343 and 9,951,372, European Pat. No. 2751089, Japanese Pat. No. 6067019 and other patents pending.
