NanoBRET® Transcriptional Protein Assays

N1870_NanoBRET--cMyc-3aMAX-Interaction-Asy_3
View information on global supply logistics
customize-this-small

Sensitive Live-Cell Assays for Monitoring Proteins Interactions in Transcription Regulation

  • Order NanoBRET® cMyc/MAX Interaction Assay by selecting N1870
  • For additional transcriptional assays go to "View Prebuilt Assays" link below

Size

Catalog number selected: N1870

$ 5,695.00
Your price:
Add to Cart
This product is discontinued
Add to Helix
This product is available under our Early Access program - Learn More
This product is available under our Catalog (FT) program - Learn More
NanoBRET® Transcriptional Protein Assays
1 each
$ 5,695.00
Your price: Log in

Study Proteins in Their Natural Cellular Context

NanoBRET® Transcriptional Protein Assays are sensitive, reproducible live-cell assays designed for monitoring or screening the interaction of proteins involved in transcriptional regulation. Interactions between proteins are key events in the regulation of gene expression with protein homodimers and heterodimers interacting on DNA elements to regulate transcriptional events required for a variety of cellular responses.

The NanoBRET® cMyc/MAX Interaction Assay measures the specific interaction between the human cMyc and MAX transcription factors within their natural cellular context. The cMyc/MAX heterodimer regulates transcription related to cell proliferation, differentiation and apoptosis, making it an important candidate for drug targeting.

Better Separation Between Donor and Acceptor Signals

Energy Transfer from NanoLuc to HaloTag NanoBRET Ligand 12749TA-W-a
Depiction of energy transfer from a NanoLuc®-Protein A fusion (energy donor) to a fluorescently labeled HaloTag®-Protein B fusion (energy acceptor) upon interaction of Protein A and Protein B.
Donor and Acceptor Signal Wavelengths for NanoBRET
Spectral separation of the NanoLuc® emission (460nm) and the fluorescent HaloTag® NanoBRET® 618 Ligand emission (618nm), and calculation of the NanoBRET® ratio.

Notes

  • Sufficient NanoBRET® Nano-Glo® Substrate and HaloTag® NanoBRET® 618 Ligand are provided to perform 400 assays in 96-well plates or 1,000 assays in 384-well plates.
  • To perform NanoBRET® PPI Assays an instrument, such as the GloMax® Discover, capable of sequentially measuring dual-filtered luminescence and equipped with appropriate filters is required. The ideal filter setup will include a band pass (BP) filter centered around 460nm to measure the donor signal (e.g., Emission 450nm/BP 80nm) and a long pass (LP) filter starting at around 600–610nm to measure the acceptor signal (e.g., Emission 610nm/LP). Filters outside of these ranges will miss critical measurements and compromise data quality.

Obtain High Assay Specificity

MAX-HaloTag and cMyc-NanoLuc DSA Specificity
Donor saturation assay performed by transfecting a constant amount of cMyc-NanoLuc® donor DNA and increasing amounts of MAX-HaloTag® acceptor DNA to represent increasing acceptor-to-donor (A:D) ratios. The negative control is nuclear-localized NanoLuc® protein as a mock donor in place of the cMyc-NanoLuc® protein fusion. The NanoBRET® cMyc/MAX Interaction Assay generates a hyperbolic curve, which indicates detection of a specific BRET interaction.

Choose Starter Systems, Prebuilt or Custom NanoBRET® Assays

Get started with NanoBRET® PPI Assays in a format that suits your needs. Design your own assays using the NanoBRET® Stater Systems, or choose from prebuilt, optimized assays for a number of popular research targets including our newest collection of RAS pathway interaction assays. You can also consult with us to design a customized assay specific for your research.

Transcriptional Protein Assay Vectors
12745MA-W
cMyc-NanoLuc® Fusion Vector sequence text file.
12746MA-W
MAX-HaloTag® Fusion Vector sequence text file.
NanoBRET® Control Vectors
12729MA-W
NanoBRET® Positive Control Vector sequence text file.
12730MA-W
p53-HaloTag® Fusion Vector sequence text file.
12731MA-W
NanoLuc®-MDM2 Fusion Vector sequence text file.

Specifications

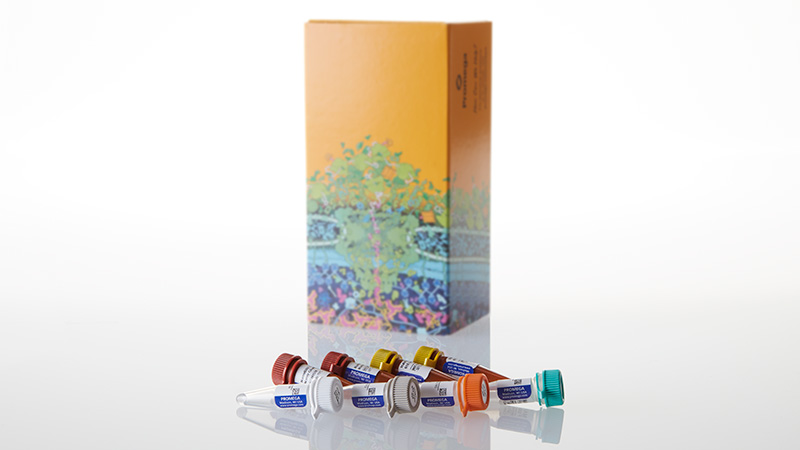

What's in the box?

Item Part # Size Available Separately

HaloTag® NanoBRET® 618 Ligand

G980A 2 × 20μl View Product

NanoBRET® Nano-Glo® Substrate

N157A 2 × 50μl View Product

p53-HaloTag® Fusion Vector

N159A 1 × 20μg

NanoLuc®-MDM2 Fusion Vector

N160A 1 × 20μg

cMyc-NanoLuc® Fusion Vector

N179A 1 × 20μg

MAX-HaloTag® Fusion Vector

N180A 1 × 20μg

Certificate of Analysis

Search by lot number

Use Restrictions

For Research Use Only. Not for Use in Diagnostic Procedures.

Storage Conditions

BB

Patents and Disclaimers

BY USE OF THIS PRODUCT, RESEARCHER AGREES TO BE BOUND BY THE TERMS OF THIS LIMITED USE LABEL LICENSE. If researcher is not willing to accept the terms of this label license, and the product is unused, Promega will accept return of the unused product and provide researcher with a full refund.

Researcher may use this product for research use only; no transfer or commercial use of this product is allowed. Commercial use means any and all uses of this product or derivatives by a party in exchange for consideration, including, but not limited to: (1) use in further product manufacture; (2) use in provision of services, information or data; and (3) resale of the product or its derivatives, whether or not such product or derivatives are resold for use in research. Researcher shall have no right to modify or otherwise create variations of the nucleotide sequence of the luciferase gene or the HaloTag® gene except that researcher may create fused gene sequences provided that the coding sequence of the resulting luciferase gene or HaloTag® gene has no more than four deoxynucleotides missing at the affected terminus compared to the intact gene sequence. No other use of this product or derivatives is authorized without the prior express written consent of Promega.

In addition, researcher must:
(1a) use Nano-Glo®-branded luminescent assay reagents (LARs) for all determinations of luminescence activity of this product and its derivatives, or
(1b) contact Promega to obtain a license for use of the product and its derivatives with LARs not manufactured by Promega.

For uses of Nano-Glo®-branded LARs intended for energy transfer (such as bioluminescence resonance energy transfer) to acceptors other than a genetically encoded autofluorescent protein, researcher must:
(2a) use NanoBRET®-branded energy acceptors (e.g., BRET-optimized HaloTag® ligands) for all determinations of energy transfer activity by this product and its derivatives, or
(2b) contact Promega to obtain a license for use of the product and its derivatives for energy transfer assays to energy acceptors not manufactured by Promega.

Researcher may transfer derivatives to others for research use provided that at the time of transfer a copy of this label license is given to the recipients and recipients agree to be bound by the terms of this label license. With respect to any uses outside this label license, including any diagnostic, therapeutic, prophylactic or commercial uses, please contact Promega for supply and licensing information. PROMEGA MAKES NO REPRESENTATIONS OR WARRANTIES OF ANY KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING FOR MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, WITH REGARD TO THE PRODUCT. The terms of this label license shall be governed under the laws of the State of Wisconsin, USA.

BY USE OF THIS PRODUCT, RESEARCHER AGREES TO BE BOUND BY THE TERMS OF THIS LIMITED USE LABEL LICENSE. If researcher is not willing to accept the terms of this label license, and the product is unused, Promega will accept return of the unused product and provide researcher with a full refund.

Researcher may use this product for research use only; no commercial use is allowed. Commercial use means any and all uses of this product by a party in exchange for consideration, including, but not limited to (1) use in further product manufacture; (2) use in provision of services, information or data; and (3) resale of the product, whether or not such product is resold for use in research. Researcher shall have no right to modify or otherwise create variations of the product. No other use or transfer of this product is authorized without the prior express written consent of Promega.

For uses of Nano-Glo®-branded reagents intended for energy transfer (such as bioluminescence resonance energy transfer) to acceptors other than a genetically encoded autofluorescent protein, researchers must:
(i) use NanoBRET®-branded energy acceptors (e.g., BRET-optimized HaloTag® ligands) for all determinations of energy transfer activity by this product; or
(ii) contact Promega to obtain a license for use of the product for energy transfer assays to energy acceptors not manufactured by Promega.

With respect to any uses outside this label license, including any diagnostic, therapeutic, prophylactic or commercial uses, please contact Promega for supply and licensing information. PROMEGA MAKES NO REPRESENTATIONS OR WARRANTIES OF ANY KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING FOR MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, WITH REGARD TO THE PRODUCT. The terms of this label license shall be governed under the laws of the State of Wisconsin, USA.

U.S. Pat. Nos. 7,425,436, 7,935,803, 8,466,269, 8,742,086, 8,420,367, 8,748,148, 9,416,353, 9,593,316 and other patents and patents pending.

U.S. Pat. No. 7,867,726 and other patents and patents pending.

U.S. Pat. No. 8,809,529, European Pat. No. 2635582, Japanese Pat. No. 5889910 and other patents and patents pending.

Patent Pending.

U.S. Pat. Nos. 8,557,970, 8,669,103, 9,777,311, 9,840,730, 9,951,373, 10,233,485, 10,633,690, 10,774,364, 10,844,422, 11,365,436, 11,661,623, 11,667,950; European Pat. Nos. 2456864, 2635595, 2990478, 3181687, 3409764; Japanese Pat. Nos. 6038649, 6155424, 6227615, 6374420, 6539689; and other patents and patents pending.

U.S. Pat. Nos. 10,067,149 and 10,024,862, European Pat. No. 2932267, Japanese Pat. Nos. 6751294 and 7092691 and other patents and patents pending.

U.S. Pat. Nos. 9,056,885 and 10,139,400, European Pat. No. 2782916 and other patents pending.
