Spectrum CE System Consumables
Plug-and-Play Prefilled Consumables
- Individually packaged and installed
- Reduced consumable waste
- Managed via 3D bar codes
Consumable Products
| Catalog No. | Product Name | Size | Price | Qty | |||
|---|---|---|---|---|---|---|---|
| CE2001 | Spectrum Buffer | View Specifications | Solicitar cotação | ||||
| CE2002 | Spectrum Cathode Septa Mat | View Specifications | 2 mats | Solicitar cotação | |||
| CE2008 | Spectrum Capillary Array, 8-Capillary | View Specifications | 1 each | Solicitar cotação | |||
| CE2012 | Spectrum Buffer and Cathode Septa Mat | View Specifications | 2/pack | Solicitar cotação | |||
| CE2048 | Spectrum Polymer4 | View Specifications | 384 wells | Solicitar cotação | |||
| CE2040 | Spectrum Polymer4 | View Specifications | 960 wells | Solicitar cotação | |||
| CE2099 | Spectrum Wash Solution | View Specifications | 1 each | Solicitar cotação | |||
| CE5004 | Spectrum Plate Base & Retainer, 96-Well | View Specifications | 4 each | Solicitar cotação | |||
| CE2696 | Septa Mat, 96-Well | View Specifications | 10 each | Solicitar cotação |
Early Access = This product is available under our Early Access program - Learn More
Catalog (FT) = This product is available under our Catalog (FT) program - Learn More
Spectrum CE System Consumables
We’ve designed the Spectrum CE System to provide simplified setup and operation. Related consumables, such as prefilled buffer and polymer, will be offered in convenient, ready-to-use packaging. Spectrum uses Radio Frequency Identification (RFID) to track key consumables with minimal “hard stops” limited to situations where there is a risk of instrument damage.
Spectrum Buffer
- Prefilled, ready-to-use cartridges
- Two each, anode and cathode cartridges
- Each cartridge is sufficient for 1,920 wells (240 injections on 8-capillary array)

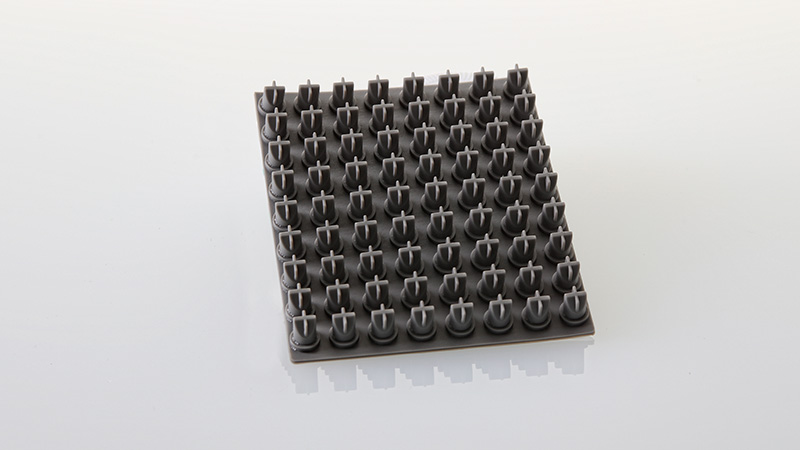

Spectrum Cathode Septa Mat
- Specific for the Spectrum cathode buffer cartridge

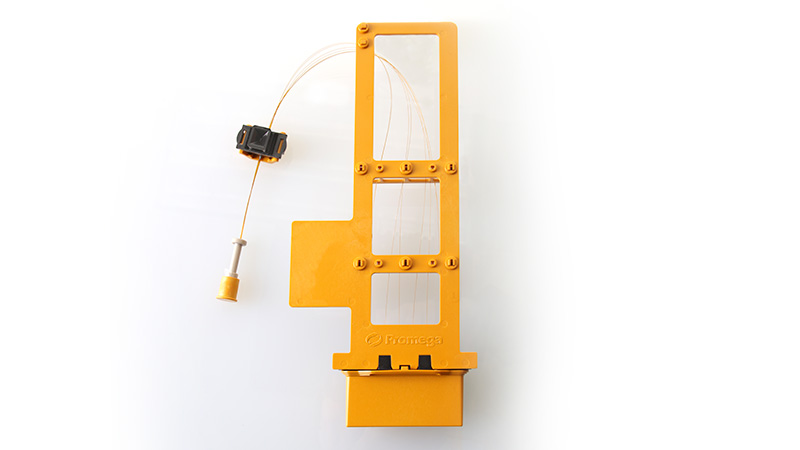

Spectrum Capillary Array
- The 8-capillary array is positioned within the oven, ensuring consistent capillary temperatures during electrophoresis
- Sufficient for ~300 injections

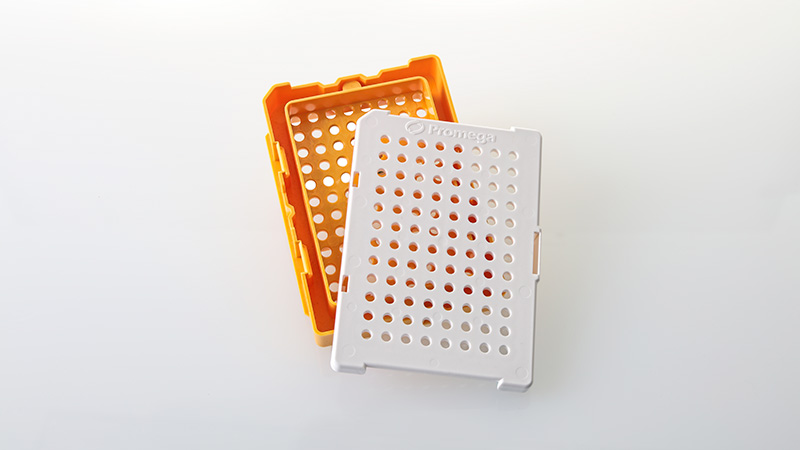

Spectrum Plate Base & Retainer
- Provides the ability to load up to four 96-well plates.

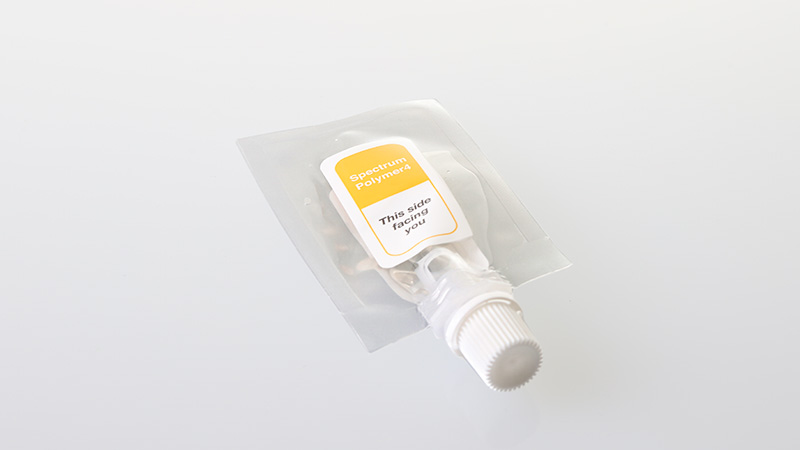

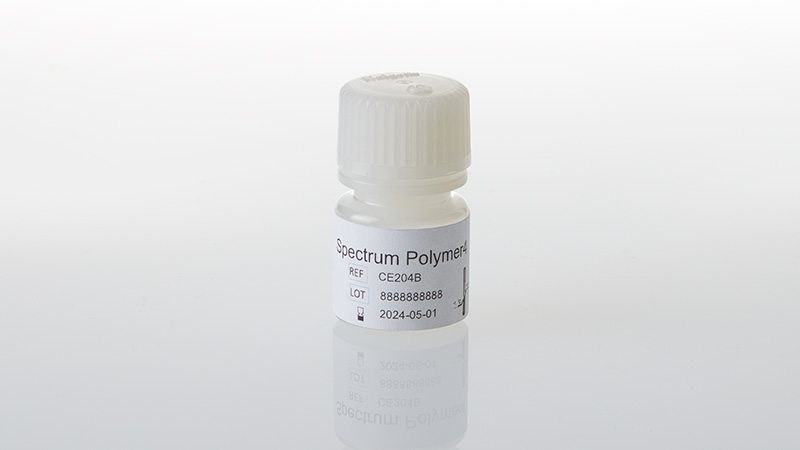

Spectrum Polymer4
- Snaps into the polymer delivery unit in a single orientation
- 384-well and 960-well sizes for different throughput needs

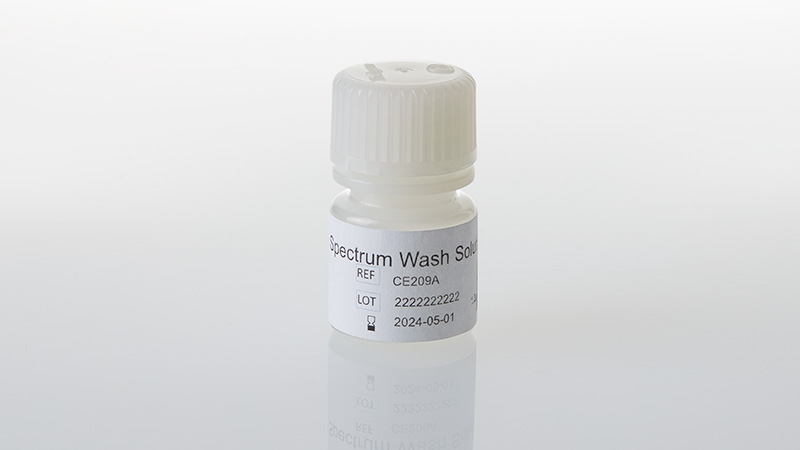

Spectrum Wash Solution
- One bottle is good for three washes

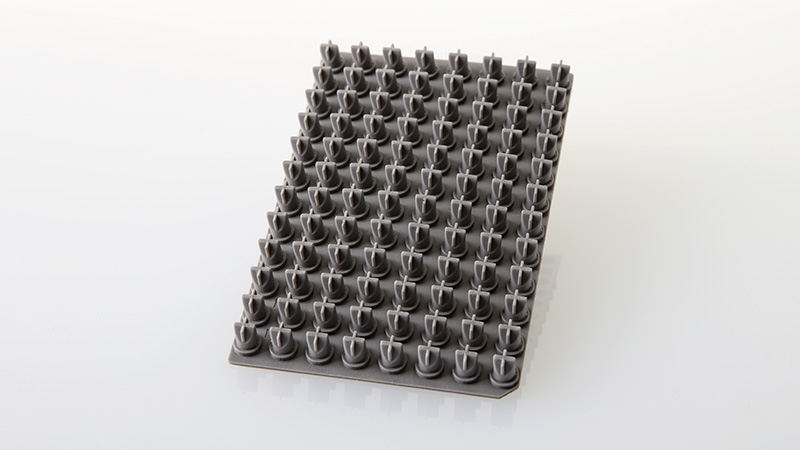

Septa Mat, 96-Well
- Used for sealing 96-well plates in capillary electrophoresis.
- Compatible with Spectrum CE System, ABI Sequencers and Genetic Analyzers.
Installing and Monitoring Consumables on the Spectrum CE System.
Protocols
No protocols available
Specifications
Catalog Number:
What's in the box?
| Item | Código | Tamanho |
|---|---|---|
Spectrum Anode Buffer |
CE200A | 2 × 1 each |
Spectrum Cathode Buffer |
CE200B | 2 × 1 each |
SDS
Search for SDSCertificado de Análise
Restrições de uso
Not For Medical Diagnostic Use.Condições de armazenamento
SDS
Search for SDSCertificado de Análise
Restrições de uso
Not For Medical Diagnostic Use.Condições de armazenamento
SDS
Search for SDSCertificado de Análise
Restrições de uso
Not For Medical Diagnostic Use.Condições de armazenamento
What's in the box?
| Item | Código | Tamanho |
|---|---|---|
Spectrum Polymer4 |
CE204A | 1 × 384 wells |
SDS
Search for SDSCertificado de Análise
Restrições de uso
Not For Medical Diagnostic Use.Condições de armazenamento
What's in the box?
| Item | Código | Tamanho |
|---|---|---|
Spectrum Polymer4 |
CE204B | 1 × 960 wells |
SDS
Search for SDSCertificado de Análise
Restrições de uso
Not For Medical Diagnostic Use.Condições de armazenamento
What's in the box?
| Item | Código | Tamanho |
|---|---|---|
Spectrum Wash Solution |
CE209A | 1 × 1 each |
SDS
Search for SDSCertificado de Análise
Restrições de uso
Not For Medical Diagnostic Use.Condições de armazenamento
SDS
Search for SDSCertificado de Análise
Restrições de uso
Not For Medical Diagnostic Use.Condições de armazenamento
SDS
Search for SDSCertificado de Análise
Restrições de uso
Not For Medical Diagnostic Use.Condições de armazenamento
